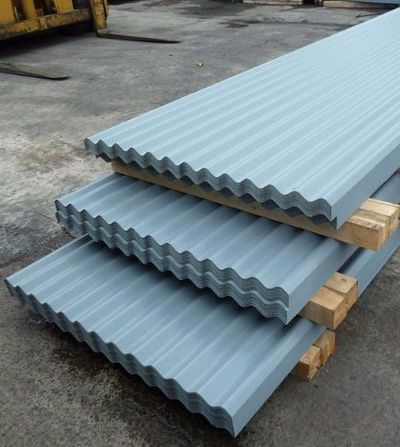

The Corrugated Iron Sheets can be used for all types of buildings, units and garages which may be situated in industrial, agricultural and domestic areas. This is a perfect roofing system that is an alternative to using felt or heavy tiles and has many advantage's including:
- Light weight
- Fully Galvanized steel which provides protection from the elements contributing a longer life span
- Fast and simple to fit
We provide the following variants:
Standard Guage Imperial Thickness Metric Thickness
22 – 8 ft & 10 ft 0.0275” (0.0248”) 0.70 mm (0.63mm)
24 – 8 ft & 10 ft 0.0236” (0.0213”) 0.60 mm (0.54mm)
26 – 8 ft & 10 ft 0.0197” (0.0177”) 0.50 mm (0.45mm)

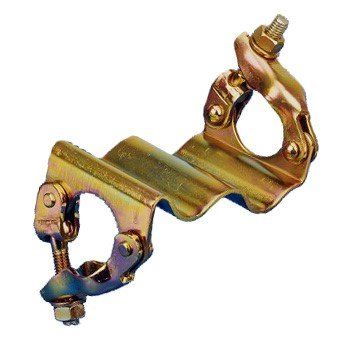

Roofing Coupler
Roofing coupler connects to a 0.7mm thick corrugated sheet with a pitch of 76.2mm. Maximum combined thickness of sheets that can be clamped is 3.0mm. Individual sheets must be connected with a minimum of two couplers and installed to BS5973:1990.
